Laser Tools 4510 - Master Diesel Compression Tester

TLC4510 – Master Diesel Compression Test Kit – Offer Price Only £338.00 +vat

This comprehensive diesel engine compression test kit covers the vast majority of modern engines fitted to most manufacturers’ vehicles. A large 2.5″ gauge with 0 – 70kg/cm² or 0 – 1000psi scales, coiled rubber hose with right-angled connection and a wide selection of glow plug and injector adaptors in both claw and clamp-on application.

0-1000 psi (0-70 kg/cm²) 2.5″ gauge with rubber bumper, 90° adaptor, 20 dummy glow plugs, 5 injector adaptors, spare seals, washers and nozzle.
Clamp and claw adaptor set – six clamp-on injector adaptors suitable for car, van, truck, bus, agricultural and marine injector sizes.
Full applications list included, for both dummy glow plug and clamp and claw injector adaptor applications.
All components available as spare parts.

New Dummy Glow Plugs for later applications now available; check Laser Site for full applications:

Part No	Size	Application	Engine codes
7235	M10x1mm, 111mm total length; thread to seal 42mm	Citroen, Peugeot, Ford, Fiat 2.0, 2.2, 2.5	DW10, DW12, DJ5TED, AZBA, G6DA, UFBA, UKBA, KLWA, QXBA, TXDA
7236	M8x1mm, 124mm total length, thread to seal 47mm	Fiat, Alfa, Ford, Suzuki,Opel, Vaux 1.3, VAG 2.0 PD TDI	1.3JTD, 1.3 TDCI, Z13DT,DTH,DTJ
7237	m8X1mm, 115mm total length, thread to seal 50mm	Citroen, Ford, Peugeot, Mini, Suzuki, Volvo 1.4 & 1.6	1.4DV4, 1.6 DV6 Ford/Peugeot Engines
7237	M10x1mm, 147mm total length, thread to seal 54mm	Vauxhall Opel 2.0 & 2.2 Dti, SAAB 2.2Tid, Mini 1.6 & 2.0 D & SD	Y20DTH, Y22DTH, N47C16A, N47C20A
7776	M9x1mm, 100mm total length, thread to seal 47mm	Fiat Range, Ford KA, Astra 1.3, Citroen Nemo, Bipper	A13DTE, A13DTC, Z13DTE, Z13DTR, 199B8.000, 199B4.000, 199B1.000, 199B100, 199A3.000, F13DTE5, BAAA

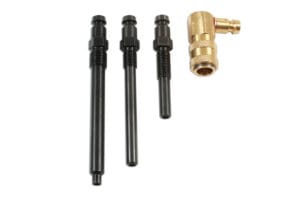

7523	SET OF 3 ADAPTORS	JLR Diesel – 2.0, 2.2, TD4, TDV6, TDV8,	Equiv to OEM 60228, 60229, 60232
